working parts & prototype



Production of components and finished objects at the best cost

working parts, components, spare parts, prototypes, design objects, in all materials and finishes
from 3D CAD, 2D CAD, existing samples.



3D print       metal casting       CNC machining      3D scan R.E.     3D CAD modeling       topology optimization




All images refer to parts manufactured by     workshapes manufacturing service

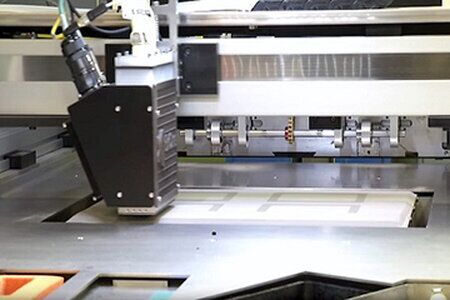

3D printing


3D print allows you to produce parts with even very complex shapes,
single or series, in metals or polymeric materials.

The technologies we use in 3d printing, allow the fabrication of parts of all levels of shape complexity without any limits, including optimized shape parts for weight and cost reduction.

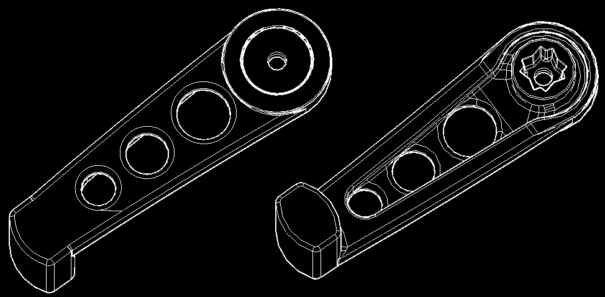

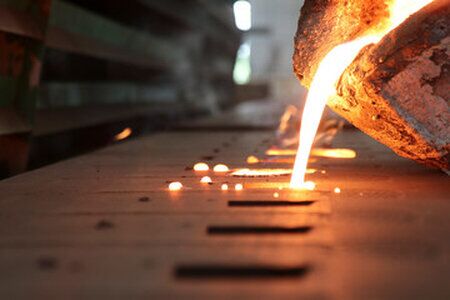

metal casting


For mass production, large parts and specific metal, production in metal casting technology ( lost wax - sand mold ) is more suitable and cost-effective.

We can make cast parts in this metals


CNC machining - finishes


Parts produced can be supplied complete with the required very high precision CNC machining (drilling, threading, flattening, etc.).
We can also supply the parts with the application of finishes (burnishing, galvanic, painting, etc.)

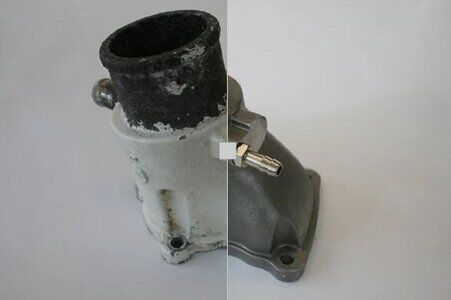

3D scan - Reverse Engineering


3D scanning and reverse engineering service for the creation of the 3D CAD model of existing parts (even very worn ones), usable for production with all technologies, of discontinued spare parts, replicas, design, etc.

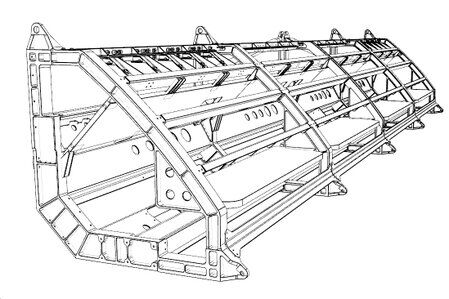

3D CAD modeling


To manufacture the part, regardless of the manufacturing technology, the 3D model is always needed.


If the model is not available, our modeling service can make it to your specifications (2D drawings, existing part, sketches, etc.)

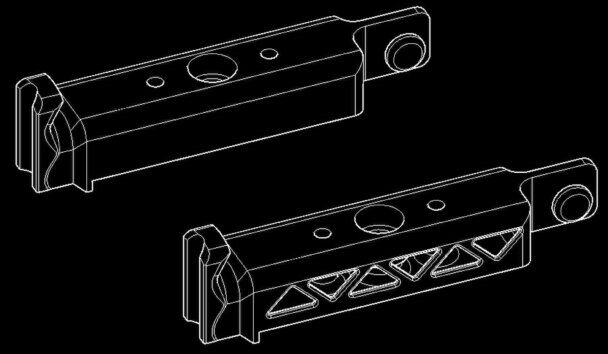

cad model
Example of an optimized and manufactured steel part

C.A.D. MODEL  (ORIGINAL PART)
WEIGHT  gr. 219
COST  € 65
 optimized model

TOPOLOGY OPTIMIZATION
WEIGHT gr. 92 (- 58%)
COST € 35 (- 46% ESTIMATED)

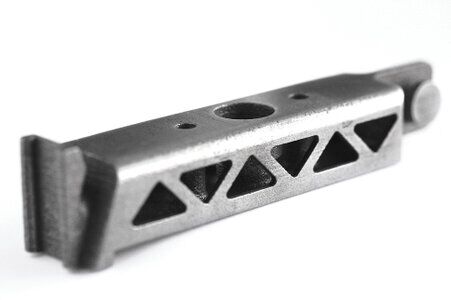

3d printed part

MANUFACTURED  PART ( burnished steel )
WEIGHT gr. 92 (- 58%) CONFIRMED
COST € 35 (- 46%) CONFIRMED

topology optimization


In the design phase of the part to be produced, it is possible to optimize the shape with a lightening lattice structure to reduce the amount of material required, weight, production times and consequently costs.
(see example)

Note: the best solution is for the topology optimization to be applied by your designers, however we do offer an optimization service.
metals
BINDER JETTING TECHNOLOGY
(low cost parts, large parts, construction supports not required)

Stainless Steel 420/Bronze alloy for parts up to 760x390x390 mm.
Can be finished natural, nickel, gold plated, matte black .pdf

Stainless steel 316L for parts up to 760x390x390 mm.
Can be finished natural or polished .pdf

Stainless Steel 316L HD High Definition 316L stainless steel for parts up to 50x50x120 mm.
LASER SINTERING TECHNOLOGY (SLS) for parts up to 250x250x280 mm

Stainless steel 316L
Aluminum AISi10Mg or AISi7Mg0.6
Titanium Ti6Al4V
Inconel 625

METAL CASTING (LOST WAX-SAND CAST TECHNOLOGY)

Stainless steel AISI 303, 304,304L,310, 316L, 403, 410, 420, 431, 416, 17.4 PH
Aluminium
Bronze
Brass
Copper
Nickel
Cobalt
polymeric materials
PA11
polyamide PA11 (WHITE) bioplastic from renewable resources manufactured in SLS for parts up to 200x200x300mm .pdf

PA12
polyamide PA12 (white) manufactured in SLS (Selective Laser Sintering), a durable nylon for large parts sizes up to 650x350x550 .pdf

HD RESIN
High Details resin for very detailed parts up to 335x200x300mm .pdf

PAINTED POLYAMIDE
PA12 polyamide painted in custom colors PANTONE or RAL (indicate the reference code - eg PANTONE 2028C or RAL2005)

PEEK High performance thermoplastic polymer

ULTEM High performance thermoplastic polymer

HP MJF PA12
polyamide PA12 (grey or black) manufactured in HP MJF (Multi Jet Fusion), a durable material for detailed parts with thin walls and sizes up to 250x340x360 .pdf

HP MJF PA12 GLASS BEADS
Polyamide PA12 (grey or black) manufactured in HP MJF (Multi Jet Fusion) 40% glass beads filled (high stiffness and high dimensional stability) .pdf

HP MJF COLORS
PA12 color polyamide in four-color process .pdf
(required textured model formats .3mf .wrl .obj)

TPU elastomer for flexible parts






 custom quote   info & quote request
Fill out the form and attach files to receive a custom quote





 3D PRINT 3D CAD MODELING
 METAL CASTING 3D SCAN-REVERSE ENGINEERING
 CNC MACHINING TOPOLOGY OPTIMIZATION







ABOUT US

We are a service company for the single or mass production of parts, components and prototypes in various metals and polymeric materials, with the use of the most convenient technologies based on the characteristics of the production (shape, material, number of parts, finishes).
We have experience in 3D design and product engineering using hardware and software tools.
A single partner for the solution of all problems related to production and an alternative to the purchase and management of equipment and resources (materials, energy, operators).
